产品说明 PRODUCT DESCRIPTION

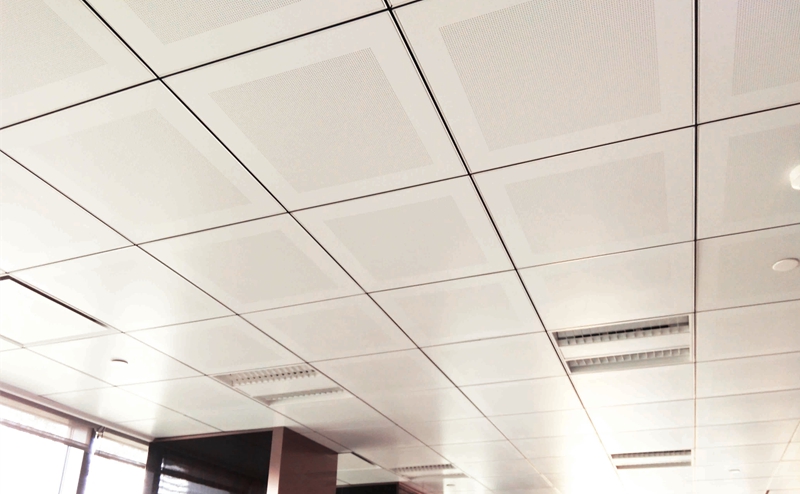

明架式铝板采用搁式结构，施工方便，无需任何工具，每件可多次重复拆装。 明龙骨中黑色凹槽线与白色方板搭配，使吊顶显得明快、色彩鲜明。 有光板、标准孔面板、微孔面板供选择。
Standard grid systems, simple accessibility. Contemporary appearance.
Un-perforated panels, standard perforated panels and micro perforated panels for options
产品参数表 PRODUCT DATA
序号 NO. | 产品名称 Product name | 型号 Specification | 材质 Material | 定尺长度 Length | 图形Picture |
1 | 吊杆 Thread Bar | M8 | 镀锌钢 Galvanized Steel | 3m |
|
2 | 大吊件 C Channel Hanger | C50/C60 | 镀锌钢 Galvanized Steel |
|
|
3 | 轻钢龙骨 C Channel | C50/C60 | 镀锌钢 Galvanized Steel | 4m |
|
4 | 龙骨吊片 Main Beam Hanger | C50/C60 | 镀锌钢 Galvanized Steel |
|
|
5 | T型龙骨 32H/28H Cross T | 32/28 | 烤漆t钢 Galvanized Steel | 3.0m |
|
6 | T型副龙骨 32H/28H Cross T | 32/28 | 烤漆t钢 Galvanized Steel | 1.2m 0.6m |
|
明架系统选用附件表 LAY IN SUSPENSION SYSTEM
名称 Product name | 说明 Product data | 板型（Picture） |
材料材质 | 钢基:0.6-0.7, 铝基：1.0-1.2 | 明架直角 |
Materials | Steel base: 0.6-0. 7mm Aluminum base: 1.0-1.2mm |
规格尺寸 Dimension | 组合模数:(W)300/400/600*(L)300/400/600/1200mm Split mould 300/400/600*(L)300/400/600/1200mm |
sharp edge |
表面处理 Surface finish | 静电粉末喷涂、预辊涂、氟碳喷涂 Fluorine carbur spray Pre-coating | 明架斜角跌级 |
颜色 Color | 白色 / 客户定制 White Wood grain Client customized |
Beveled edge |
冲孔 Perforation | 标孔 / 客户定制 Standard Perforation Client customized | 明架直角跌级 |
吸音材料 Acoustic material | Soundex / 客户定制 Soundex Client customized | sharp edge |
|
防火性能 Fire performance | A1 grade |
声学性能 Acoustical performance | NRC=0.65-0.8 |
