产品说明 PRODUCT DESCRIPTION
A 单曲?板 SINGLE CURVED PANEL
1、平面曲线板即采用转塔冲床冲出圆弧曲线的面板。
2、曲面弧板采用辊弯机辊出圆弧曲面的面板，长度小于4米，半径大于250mm,正弧（挤压）小于15mm的折边，反弧(张拉) 小于20mm的折边。
3、大小头的斜切圆弧分割拼装可以产生双曲效果。
● Plane curve panel, i.e. the arc curved panel punched by rotating turret punch press.
● Curved surface arc panel, i.e. the arc curved surface panel rolled by rolling machine. The length is lesser than 4 meter, radius is greater than 250mm, the positive arc(extrusion) is lesser than 15mm edge and the anti-arc(stretch) is lesser than 20mm edge.
● Beveling arc and segment to install of the big and small head can create hyperbolic effect.

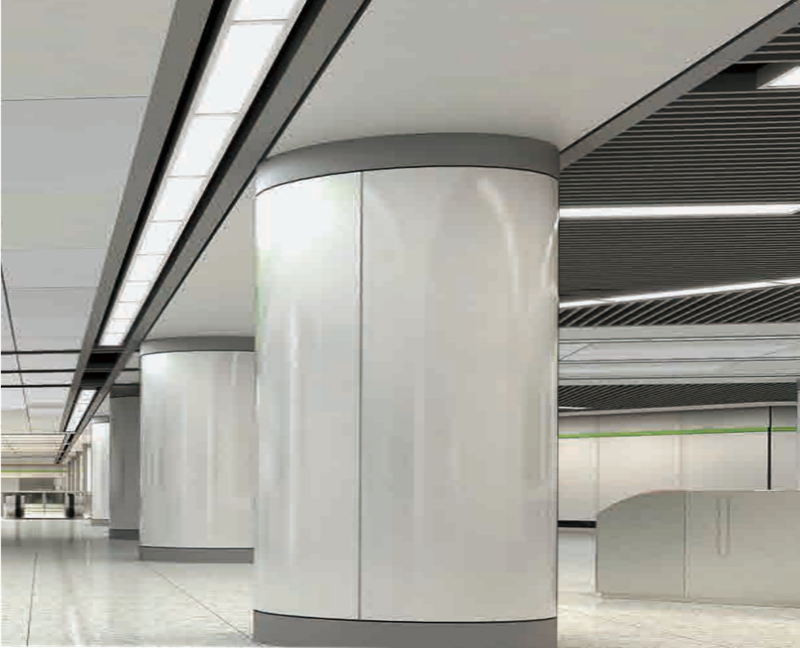

单曲面立柱安装结构示意图
Installation Instance of Column Packing of Currency Brand Aluminum Single Panel
1.铝单板
2.镀锌方钢
3.角钢调平焊接、 防锈处理 4.角码交错安装
5.自攻螺丝
6.膨胀螺栓
7.密拼封
1.Brand aluminum single panel 2.steel square pipe
1. Angle steel welding and anti-rusting treatment after leveling
2. Foam strip pad
3. Crisscross install of suspension loop 6.Expansion bolt
7. Split seal

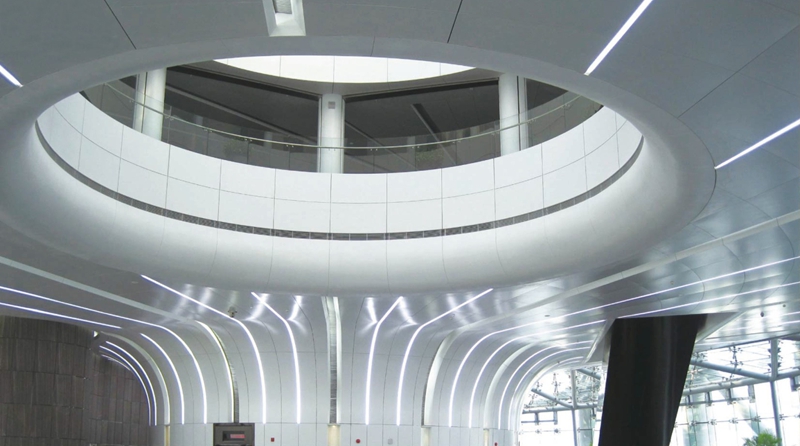

B 双曲线板 HYPERBOLIC PANEL
随着建筑外形风格的多样化，双曲面铝单板已越来越受到业主和设计师的青睐,由于其加工难度大，能生产双曲面板的厂家又很少，很 多工程只能放弃原有设计方案，导致整体效果难以准确表达出设计师的设计理念,本企业大胆探索，自主创新，利用三维建模原理，解 决了铝单板行业的难点技术—双曲面铝单板的生产、设计工艺，成为国内为数不多的真正能批量生产双曲面铝单板和复杂异形板的企 业之一，为设计师提供了更为广阔的想象和设计空间。
版面效果比常见的通过分割焊接产生的双曲板平整度好，安装效果比所谓的“以直代曲”等假双曲的弧线圆滑，充分展示了双曲面铝 单板在金属幕墙和天花上无可代替的独特魅力。
With the diversification of architectural appearance style, hyperboloid aluminum veneer has more and more get the favour of the owner and designers.Because its processing is difficult, can produce hyperbolic panel manufacturer and
very few, a lot of engineering can only give up the original design, cause the overall e?ect is di?cult to accurately express the designer's design concept.This enterprise the bold exploration, innovation, the use of three-dimensional modeling principle, and
solved the di?culties of aluminum veneer industry techno1ogy - hyperboloid aluminum veneer production, design,
become one of the few domestic real hyperboloid mass production one of aluminum veneer and complex shaped plate
companies provides designers with a more broad space for imagination and design.E?ect than the common layout by splitting good ?atness, hyperbolic produced by the welding plate installation e?ect than the so-called " straight? generation of music such
as the false hyperbolic curve smooth, fully shows the metal hyperboloid aluminum veneer curtain wall and ceiling is in place
of unique charm.Applicable places: big business office building, municipal office project, conference and exhibition center, large venues, museums, senior club, hospital complex building, hotel lobby, railway stations, subways, convention and exhibition center, airport, etc all kinds of buildings.
