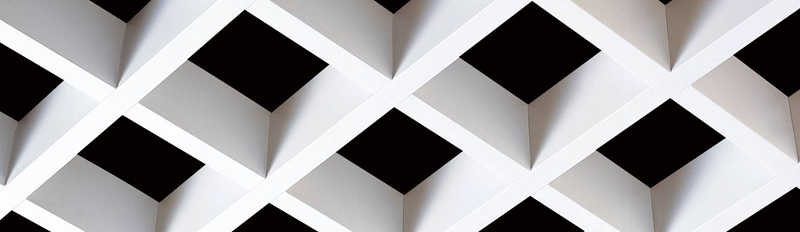

产品说明 PRODUCT DESCRIPTION

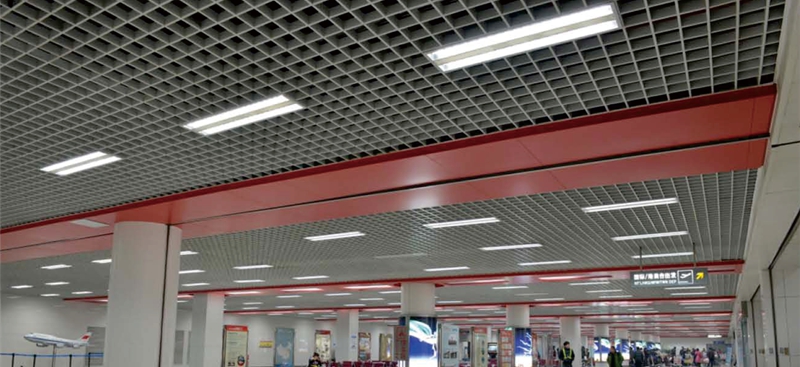

此是一种开放性天花，适合大型的购物商场、机场、车站。产品安装方便，可以将整个拼装好的模块插入主龙骨内，形成了开启式室 内吊顶。通风、空调、照明非常方便的装入吊顶系统内。
●This system is an opening type ceiling.
●It can be easily adapted to suit large shopping mall, airport and station, etc. and can be embedded in the main beam with assembling module into the building layouts.
●Ventilation, air-condition and illumination are easily to be installed in the ceiling system.

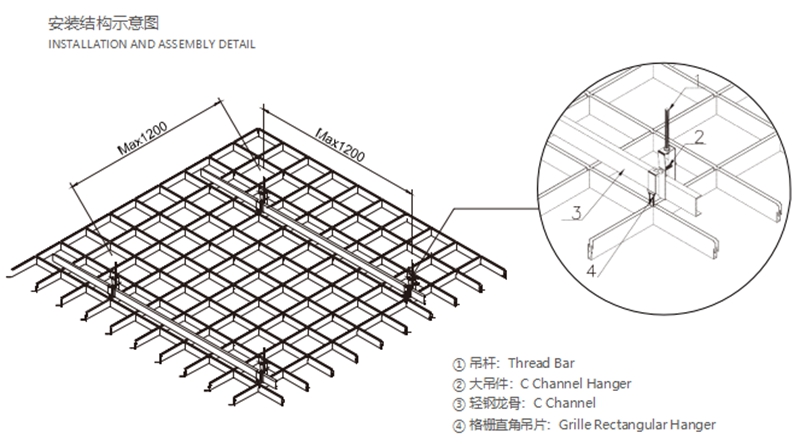

格栅系列选用辅件表 GRILLE SUSPENSION SYSTEM
序号 NO. | 产品名称 Product name | 型号 Specification | 材质 Material | 定尺长度 Length | 图形 Picture |
1 | 吊 杆 Thread Bar | M8 | 镀锌钢 Galvanized Steel | 3m |
|
2 | 大 吊 件 C Channel Hanger | C50/60 | 镀锌钢 Galvanized Steel |
|
|
3 | 轻钢龙骨 C Channel | C50/60 | 镀锌钢 Galvanized Steel | 4m |
|
4 | 吊 片 V-baffle Hanger | C50/60 | 镀锌钢 Galvanized Steel |
|
|
5 | V挂片龙骨 V-baffle Grid | GV50 | 烤漆钢 Galvanized Steel | 3m |
|
产品参数表 PRODUCT DATA
名称 Product name | 说明 Product data | 板型（Picture） |
材料材质 Materials | 铝基Aluminum base：0.5-0.6mm |
|
规格尺寸 Dimension | (W)：10/15*(L)2000/1950*1980*(H)50/80 |
组合模数 lattice | 50*50/100*100/150*150/200*200 |
表面处理 Surface finish | 静电粉末喷涂、预辊涂、氟碳喷涂 Fluorine carbur spray Pre-coating |
颜色 Color | 白色 / 客户定制 White Wood grain Client customized |
